Technology Empowering Stage Arts! Saijia Creates Integrated Sound, Light And Electricity Solution for Qingyuan Radio And Television Station's 400㎡ Variety Studio

1. Project Overview

The Qingyuan Radio and Television Station Variety Studio has a construction area of approximately 400 square meters, approximately 20 meters wide, 24.5 meters long, with a floor height of approximately 11 meters and a stage depth of approximately 11 meters. The control room and equipment machine room cover approximately 70 square meters. Other ancillary rooms include actor waiting areas, VIP rooms, men's and women's makeup rooms, corridors, etc., with a total construction area of approximately 900 square meters.

Rendering of Sound, Light and Electricity System for Stage Area of Qingyuan Radio and Television Station Studio

2. Project Content

The Qingyuan Radio and Television Station 400㎡ Variety Studio Sound, Light and Electricity System Construction Project centers on the core concepts of "Multi-functionality, Flexibility, and Scenario-based Design," creating a modern studio space integrating stage lighting and mechanical systems, sound systems, large-screen display systems, central control systems, air conditioning and power distribution systems, acoustic systems, motorized seating, and ancillary facilities.

Core Highlights:

1. Multi-system Integration: Covers 7 major professional systems including lighting, acoustics, sound, mechanics, and central control, achieving intelligent collaborative control of sound, light, electricity, and mechanics to meet diverse program production needs such as variety shows, interviews, and press conferences.

2. Flexible Scene Transformation: The stage performance area design emphasizes dynamic variability. Through the linkage of stage art installations, large-screen content switching, and lighting effects, rapid visual transformation of different scenarios such as interviews, government inquiries, and knowledge competitions can be achieved, enhancing program recognition.

3. Technology Empowering Art: Adopts deep integration of large-screen display systems and lighting matrices, supporting immersive stage art effects combining virtual and real elements; intelligent central control system achieves centralized equipment management, improving production efficiency.

4. Professional Supporting Guarantee: Acoustic system optimizes spatial sound effects, air conditioning and power distribution meet high-load equipment operation, and motorized seating and ancillary room facilities complete the functional layout, ensuring the studio is both professional and user-friendly.

Rendering of Sound, Light and Electricity System for Stage Area of Qingyuan Radio and Television Station Studio

Rendering of Sound, Light and Electricity System for Actor Waiting Area of Qingyuan Radio and Television Station

Rendering of Sound, Light and Electricity System for VIP Room of Qingyuan Radio and Television Station

3. Project Requirements

Stage Lighting System Performance Requirements:

- When the camera aperture is 5.6, the vertical illuminance of comprehensive light in the face light area (color temperature 5600K) shall not be lower than 1200LUX.

- The color temperature of the studio area shall be 5600±150K.

- The color rendering index of light in the studio area shall not be less than 95 (continuous spectrum).

- The studio lighting power supply adopts AC three-phase four-wire 380V/220V 50Hz, with AC single-phase voltage to the luminaires.

- Stage lighting installation meets 4K shooting illuminance standards, with uniform lighting distribution in stage and audience areas.

Sound Reinforcement System Design Basis:

1. "Code for Design of Sound Reinforcement System for Halls and Stadiums" GB/T 28049-2011

2. "Sound System Equipment - General - Simulated Programme Signals" GB/T6278-2012

3. "Specification for Editing and Production of Programme Sources for Subjective Assessment of Sound Quality of Electroacoustic Products" GB/T 10240-1988

4. "Code for Engineering Acceptance of Generic Cabling System" GB/T 50311-2016

5. "Methods of Measurement for the Characteristics of Sound Reinforcement in Halls" GB/T 4959-2011

6. "Acoustic Characteristic Index of Sound Reinforcement System for Halls" GYJ 25-1986

Sound Field Analysis:

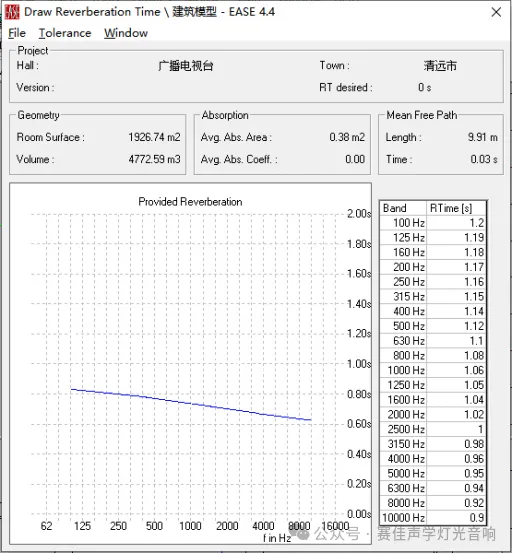

Room RT Reverberation Time Chart

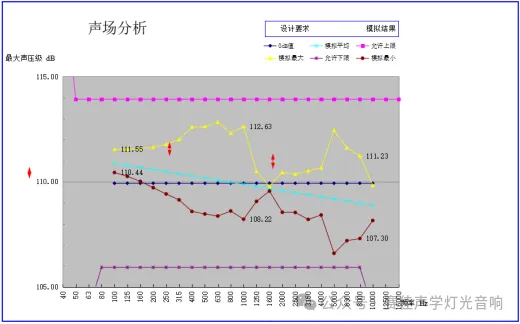

Transmission Frequency Characteristic Curve

Through EASE simulation calculations, the transmission frequency characteristic data for the audience area was obtained. The average sound pressure level from 80-8000Hz is 109.66dB. As shown in the figure above, the transmission frequency characteristic of the audience area can reach: average sound pressure level of 109.66dB from 80-8000Hz, with variation of -4dB~+4dB within this frequency range (1/3 octave measurement). The transmission frequency characteristics of 40-80Hz and 8000-16000Hz are both within the allowable variation range, basically meeting the design requirements.
